Name: Pry-J Series Manual Paperboard Laminating Machine for Paper Processing
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: Pry-J
Price: 10,500.00 USD
Availability: InStock

Pry-J Series Manual Paperboard Laminating Machine for Paper Processing

Informazioni di base

Place of Origin:	China
Marca:	PRINTYOUNG
Certificazione:	CE
Model Number:	Pry-J

Minimum Order Quantity:	1 Set
Prezzo:	US 10000 ~ 11000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

Contattaci

Min. Size:

260 * 260 mm

Thickness of Laminating Paper:

120 ~ 500 g

Laminating Speed:

10 ~ 50 piece/min

Power Supply:

380/220V 3phases

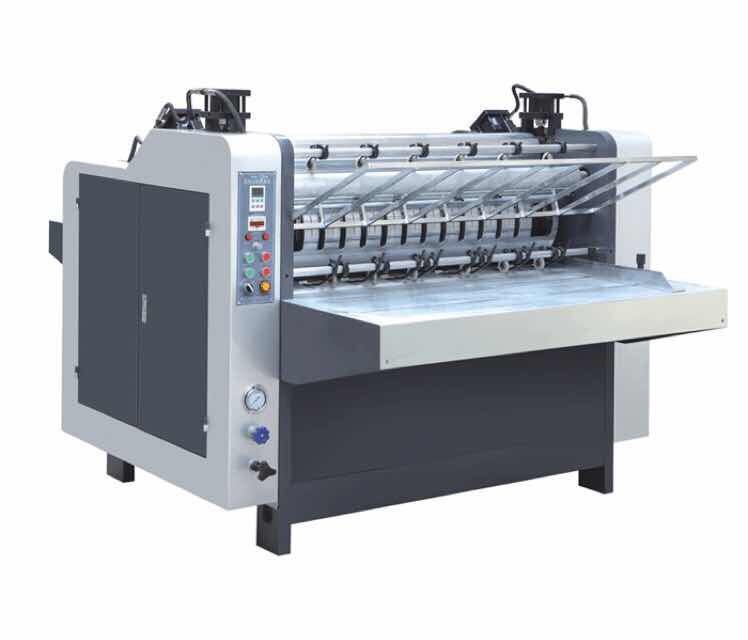

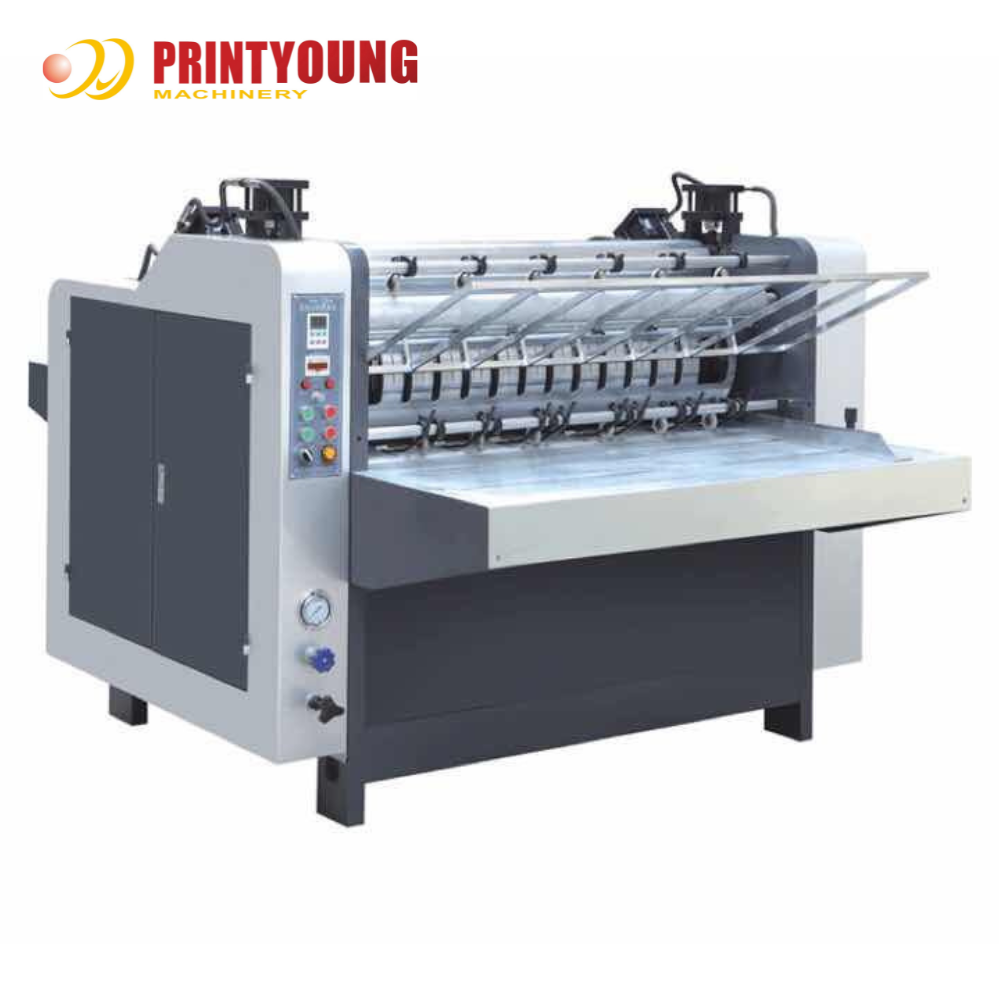

PRY-1000J Manual Paperboard Laminating Machine

Features

Our pneumatic hydraulic multi-function paperboard overlayer is the first one developed and successfully developed by our company on the basis of type A,type B and type C.It has updated and launched another generation of brand-new models(i.e. the fourth generation). This machine integrates pneumatic,hydraulic,photoelectric and mechanical elements.It has photoelectric counting,paper blank protection control function and full hydraulic device,and adopts imported pneumatic,hydraulic automatic locking and photoelectric components, which can automatically control the misoperation when there is no paper input,that is,when there is no paper input on either side during paper covering,the other side will not feed paper,so as to avoid sticking to the large roller without paper covering it after one-way paper feeding and gluing,save the time to wipe the adhesive roller frequently,and reduce the trouble caused by it,The waste rate of the coated paper is greatly reduced,and the precision and speed of the coated paper are improved.The machine also uses the most advanced hydraulic technology in China to automatically lock to complete the whole process of paper gluing, covering and compaction,so as to make the gluing more uniform, use less glue and have higher bonding strength.The coated paper is flat and hard,with high output,good quality,convenient use and simple operation.This machine is unparalleled with all the paperboard overlaying machines in the current market.It is the most advanced multi-functional paperboard overlaying machine among similar products in China.It is also the most ideal special equipment for the printing and packaging industry as a high-grade paperboard for covering and making various packaging boxes and paperboard for other purposes.

Technical Parameters

Model	PRY-1000J	PRY-1050J	PRY-1150J
Min. Size	260 * 260 mm	260 * 260 mm	260 * 260 mm
Max. Size	970 * 750 mm	1040 * 750 mm	1110 * 750 mm
Thickness of Laminating Paper	120 ~ 500 g	120 ~ 500 g	120 ~ 500 g
Laminating Speed	10 ~ 50 piece/min	10 ~ 50 piece/min	10 ~ 50 piece/min
Laminating Accuracy	Tolerance 0.3mm	Tolerance 0.5mm	Tolerance 0.5mm
Power Supply	380/220V 3phases	380/220V 3phases	380/220V 3phases
Motor Power	2.2kw + 0.75kw	2.2kw + 0.75kw	2.2kw + 0.75kw
Weight	2.2 T	2.4 T	2.4 T
Overall Dimensions	2030 * 1490 * 1370 mm	2030 * 1640 * 1370 mm	2030 * 1640 * 1370 mm
Package Dimensions	2170 * 1770 * 1600 mm	2170 * 1920 * 1600 mm	2170 * 1920 * 1600 mm
